375 Series T4F Portable Diesel Compressors

375 Series T4F Portable Diesel Compressors

DESIGNED TO GET THE JOB DONE

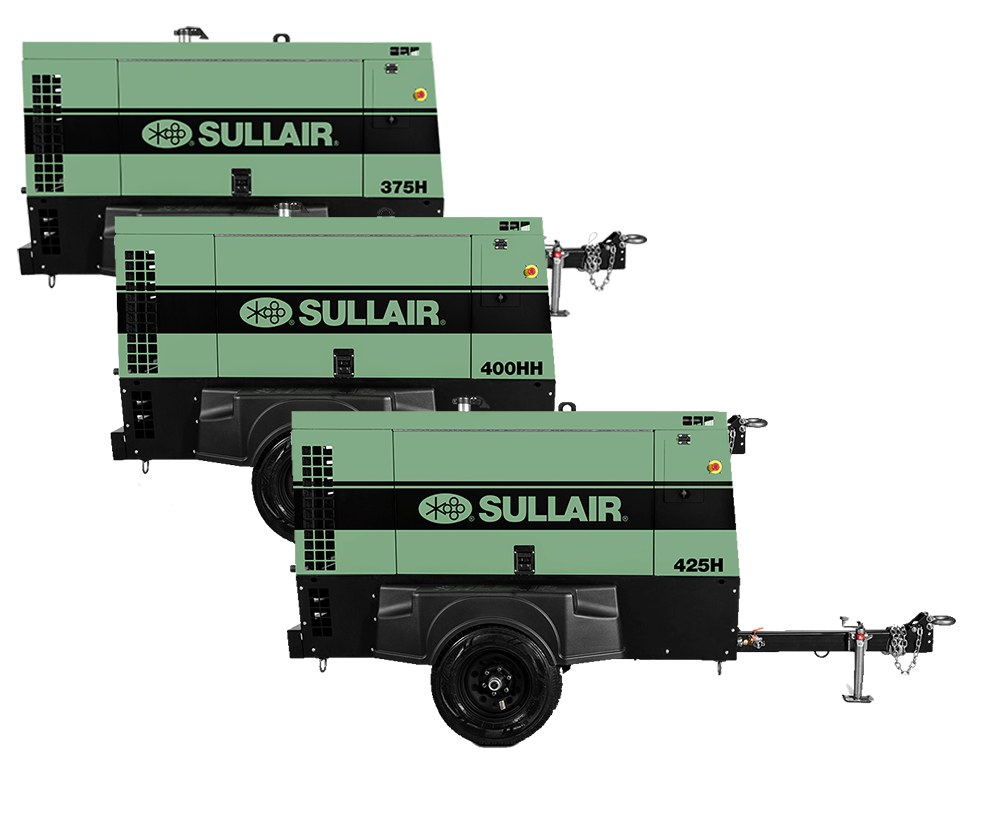

375 Series T4F Portable Diesel Compressors, Sullair 375 Series portable air compressors are ready to hit the ground running for a variety of jobsite applications. Crafted for enhanced usability and serviceability, the 375 compressor family has multiple units—including the award-winning 400HH featuring air pressures up to 200 psi.

Compact design
Easy pressure change
Extended runtime

Available with your choice of a reliable Caterpillar or Perkins engine!

0,00 $

Available on backorder

SKU 375 Series T4F Category Portable Diesel Compressors

Description

FLOW

375 – 425 cfm
10.6 – 12 m³/min

PRESSURE

150 – 200 psi
10.3 – 13.8 bar

POWER

122 – 157 hp
91 – 117 kW

Features & Benefits

Multiple Engine Options
- Caterpillar C4.4 (T4F)
- Perkins 1204F (T4F)
Compact Design
- Easier towing to and from the job site
- Improved maneuverability — fits more easily in smaller space
- More convenient storage — on the job site or at the yard
Easy Pressure Change
- Select models shift from low to high pressure with the turn of a switch
Quiet Operation
- 74 decibels at 23 feet operating at full load
Extended Runtime
- Oversized 65 gallon tank
- Up to 10 hours of runtime at full load
  - 5–7% improvement in fuel consumption at full load compared to previous models
Easy Service and Maintenance
- Swing doors with slam latches to ensure doors stay open
- Easy access to key components including:
  - Cooler; aftercooler (if equipped)
  - Compressor fluid and air filters
  - Engine filters
  - Battery and battery disconnect
Legendary Sullair 16-Series Air End
Low Fuel Shutdown
Discharge Temperature Sensor
Electric Brakes
LED Tail Lights
LED Turn Lights
Clearance Lights
Sullair AWF® All Weather Fluid — Factory Fill Lubricant

Options

Cold weather package
Jack caster with wheels
Mechanical parking brake
Single or dual hose reels
Aftercooled and filtered

Models & Specs

Performance by Model

375H

Actual Delivery cfm (m³/min): 375 (10.6)
Rated Pressure psig (bar): 150 (10.3)
Pressure Range min/max (bar): 80 (5.5) / 175 (12.1)
Fuel Consumption Full Load gal/h (l/h): 5.9 (22.3)
Maximum Operating Altitude ft (m): 9000 (2743)
Makes & Models: CAT C4.4 & Perkins 1204F (T4F)
Operating Speed rpm: 2100
Available Power bhp (kW): 122 (91)
Displacement in³/l: 269 (4.4)
Cooling System Capacity gal (l): 6.9 (26)
Engine Oil Capacity qts (l): 8.5 (8)
Fuel Tank Capacity gal (l): 65 (246)
Electrical System Voltage: 12
Battery Rating CCA: 1125
DEF Consumption % of Fuel: 2.3%
DEF Capacity gal (l): 5 (19)
Service Valves No. & (Size): 2 (¾”)
Compressor Oil Capacity gal (l): 8 (30)

400HH

Actual Delivery cfm (m³/min): 400 (11.3)
Rated Pressure psig (bar): 200 (13.8)
Pressure Range min/max (bar): 80 (5.5) / 225 (15.5)
Fuel Consumption Full Load gal/h (l/h): 7.4 (28)
Maximum Operating Altitude ft (m): 9000 (2743)
Makes & Models: CAT C4.4 & Perkins 1204F (T4F)
Operating Speed rpm: 1900
Available Power bhp (kW): 157 (117)
Displacement in³/l: 269 (4.4)
Cooling System Capacity gal (l): 6.9 (26)
Engine Oil Capacity qts (l): 12 (11.5)
Fuel Tank Capacity gal (l): 65 (246)
Electrical System Voltage: 12
Battery Rating CCA: 1125
DEF Consumption % of Fuel: 2.3%
DEF Capacity gal (l): 5 (19)
Service Valves No. & (Size): 1 (1 ½ “)
Compressor Oil Capacity gal (l): 8 (30)

425H

Actual Delivery cfm (m³/min): 425 (112)
Rated Pressure psig (bar): 150 (10.3)
Pressure Range min/max (bar): 80 (5.5) / 175 (12.1)
Fuel Consumption Full Load gal/h (l/h): 7.7 (29.1)
Maximum Operating Altitude ft (m): 9000 (2743)
Makes & Models: CAT C4.4 & Perkins 1204F (T4F)
Operating Speed rpm: 2100
Available Power bhp (kW): 157 (117)
Displacement in³/l: 269 (4.4)
Cooling System Capacity gal (l): 6.9 (26)
Engine Oil Capacity qts (l): ;12 (11.5)
Fuel Tank Capacity gal (l): 65 (246)
Electrical System Voltage: 12
Battery Rating CCA: 1125
DEF Consumption % of Fuel: 2.3%
DEF Capacity gal (l): 5 (19)
Service Valves No. & (Size): 2 (¾ “)
Compressor Oil Capacity gal (l): 8 (30)

Weights & Dimensions for 375H, 400HH, 425H

DPQ Package — Includes Running Gear

Working weight lbs (kg): 4840 (2195)
Dry weight lbs (kg): 4200 (1905)
Length in (mm): 156 (3962)
Width in (mm): 78 (1958)
Height in (mm): 76 (1921)
Track Width in (mm): 67 (1702)
Max Towing Speed mph (km/h): 55 (89)
Axle Rating lbs (kg): 5000 (2268)
Tire Size: 225/75R15

DLQ Package — Less Running Gear

Working weight lbs (kg): 4610 (2092)
Dry weight lbs (kg): 3970 (1801)
Length in (mm): 101 (2577)
Width in (mm): 59 (1506)
Height in (mm): 64 (1619)

*Non-aftercooled
