300 and 375 Series T2-T3 Portable Diesel Compressors

Models & Specs

PERFORMANCE

300HH

Actual Delivery cfm (m³/min): 300 (8.5)
Rated Pressure psi (bar): 200 (13.8)
Pressure Range min/max psi (bar): 80/200 (5.5/13.8)
Sound Level dB(A)*: 76
Available Engines Make & Model (Emissions Level)

• John Deere 4045HF285 (T3)
• Caterpillar C4.4 (T2 & T3)

375

Actual Delivery cfm (m³/min): 375 (10.6)
Rated Pressure psi (bar): 100 (6.9)
Pressure Range min/max psi (bar): 80/125 (5.5/8.6)
Sound Level dB(A)*: 76
Available Engines Make & Model (Emissions Level)

• John Deere 4045HF285 (T3)
• Caterpillar C4.4 (T2 & T3)

375H

Actual Delivery cfm (m³/min): 375 (10.6)
Rated Pressure psi (bar): 150 (10.3)
Pressure Range min/max psi (bar): 80/150 (5.5/10.3)
Sound Level dB(A)*: 76
Available Engines Make & Model (Emissions Level)

• John Deere 4045HF285 (T3)
• Caterpillar C4.4 (T2 & T3)

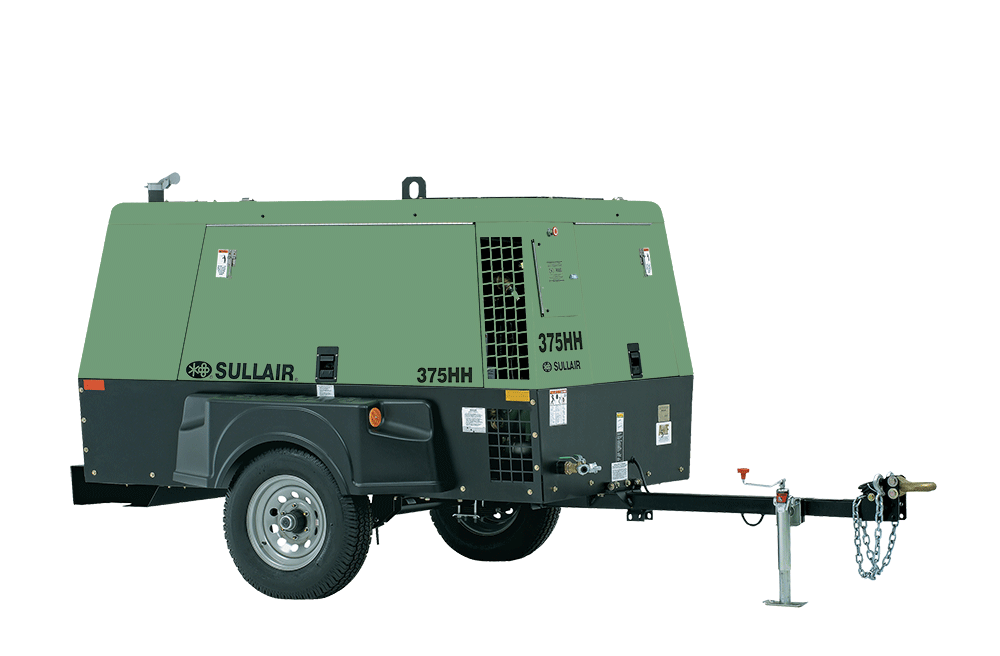

375HH

Actual Delivery cfm (m³/min): 375 (10.6)
Rated Pressure psi (bar): 200 (13.8)
Pressure Range min/max psi (bar): 80/200 (5.5/13.8)
Sound Level dB(A)*: 76
Available Engines Make & Model (Emissions Level)

• John Deere 4045HF285 (T3)

425

Actual Delivery cfm (m³/min): 425 (12)
Rated Pressure psi (bar): 100 (6.9)
Pressure Range min/max psi (bar): 80/125 (5.5/8.6)
Sound Level dB(A)*: 76
Available Engines Make & Model (Emissions Level)

• John Deere 4045HF285 (T3)
• Caterpillar C4.4 (T2 & T3)

425H

Actual Delivery cfm (m³/min): 425 (12)
Rated Pressure psi (bar): 150 (10.3)
Pressure Range min/max psi (bar): 80/150 (5.5/10.3)
Sound Level dB(A)*: 76
Available Engines Make & Model (Emissions Level)

• John Deere 4045HF285 (T3)

ENGINES

John Deere 4045HF285 (T3)

Cylinders: 4
Bore & Stroke in (mm): 4.19 x 5.00 (106 x 127)
Rated Power hp (kW): 140 (104)
Rated Speed rpm: 2200
Displacement in³ (l): 275 (4.5)

Caterpillar C4.4 (T2 & T3)

Cylinders: 4
Bore & Stroke in (mm): 4.13 x 5.00 (105 x 125)
Rated Power hp (kW)

• 300HH & 375H T2 Models: 129 (96)
• 375 & 425 T2 Models: 107 (79.5)
• 300HH, 375H & 425 T3 Models: 130 (97)
• 375 T3 Models: 117 (87)

Rated Speed rpm: 2200
Displacement in³ (l): 268 (4.4)

DPQ PACKAGE – INCLUDES RUNNING GEAR

Working Weight lbs (kg): 4440 (2014)
Dry Weight lbs (kg): 4050 (1837)
Drawbar Length in (mm): 156 (3962)
Canopy Length in (mm)

• John Deere: 99 (2515)
• Caterpillar: 107 (2718)

Width in (mm): 77 (1956)
Height in (mm)

• John Deere: 74 (1880)
• Caterpillar: 76 (1930)

Track Width in (mm): 68 (1715)
Tire Size (load range): H78 x 15ST (D)

DLQ PACKAGE – LESS RUNNING GEAR

Working Weight lbs (kg): 4195 (1903)
Dry Weight lbs (kg): 3805 (1726)
Canopy Length in (mm)

• John Deere: 99 (2515)
• Caterpillar: 107 (2718)

Width in (mm): 59 (1499)
Height in (mm)

• John Deere: 64 (1626)
• Caterpillar: 65 (1657)
