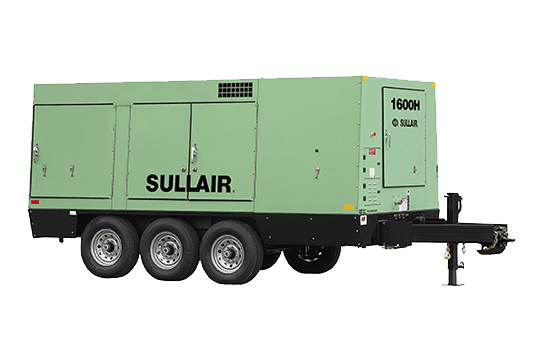

Name: 1600H T3 Portable Diesel Rotary Screw Compressor. Best #1 Sullair compressor
SKU: 1600H T3
Availability: InStock

Description

FLOW

1600 cfm
45.3 m³/min

PRESSURE

150 psi
10.3 bar

POWER

540 hp
403 kW

Features & Benefits

Rotary screw compressor
0 to 100% capacity control
COMPASS® controller
Electronic engine control
Curbside instrument panel – in weather tight enclosure
Protective shutdown switches
Two-stage air filters with safety element
Ample service doors
Containment frame
Galvanneal sheet metal
AWF® Compressor Fluid – All weather, all climate fluid
Warranty
- 1 year standard warranty
- 2 year standard air end warranty
- 5 year or 10,000 hour air end warranty when continuously serviced at the recommended intervals with Sullair AWF compressor fluid and filters
- Diesel engine warranty applies – contact Sullair for more informationFeatures may vary by model, please contact your local distributor for more information

Options

Block heater
Special color paint
Aftercooler and filters / louvers: aftercooler and filters provide instrument quality air that meets ISO 8573-1: Class 1.7.1 Compressed Air Standard
Three mounting options
- Less running gear
- Four-wheel steerable
- Tri-axle
  - Electric brakes
  - Mechanical parking brake
  - E-Z lube axleOptions may vary, please contact your local distributor for more information

Models & Specs

Model Specifications

1600H (T3)

ACTUAL DELIVERY – CFM( M3/MIN)

1600 (45.3)

RATED PRESSURE – PSIG (BAR)

150 (10.3)

PRESSURE RANGE, MIN – PSIG (BAR)

80 (5.5)

PRESSURE RANGE, MAX – PSIG (BAR)

150 (10.3)

ENGINE MAKE & MODEL

CATC-15ATAAC (T3)

AVAILABLE POWER – BHP (KW)

540 (403)

FUEL TANK CAPACITY -GAL (L)

190 (719)

FUEL CONSUMPTION 100% LOAD – GPH (L/H)

26.3 (99.6)
